The Road Transport and Safety Agency (RTSA) seeks the services of experienced and reputable organizations to supply, deliver and install a solar hybrid back-up system for the Agency’s Head Office Complex. This is part of the Agency’s drive to ensure sustainable business continuity in line with Central Government’s directive.
A. Project Objectives:
The Agency requires solar power systems to maximize energy independence by minimizing reliance on the utility grid and backup generators, and also minimizing the Agency’s carbon footprint to promote environmental sustainability.
1. Maximise daytime power voltage input: We aim to generate as much solar power as possible during daylight hours to meet the Agency’s daytime electricity needs.
2. Battery storage for backup and support: We require a battery storage system with sufficient capacity to allow operations of up to 24 hours
completely off-grid.
3. Supplement daytime power: Ensure essential equipment continues to operate during off-peak hours (night). Provide backup power during inclement weather or early morning hours when solar production is low. Warranty: Provide a comprehensive warranty on all equipment and workmanship of not less than 2 years.
RTSA Head Office Complex
|
S/N
|
Office Location
|
Number of Floors
|
Special considerations
|
| 1 |
Lusaka
|
6 |
Includes 2 elevator system that is required to aid vertical, movement in the building
|
| 2 |
Lusaka
|
2 |
Includes a server room that requires temperature control, 24 hours a day & has a fire suppression system installed
|
|
S/N
|
Technical Description
|
QUANTITY
|
| 1 | Smart Hybrid Inverter (silent): To produce Total 200kW ▪ Inclusive of remote monitoring configuration ▪ 3/PE, 480V |
4 |
| 2 | Lithium-ion Battery Bank: ▪ To provide a minimum 24 hours of off-grid autonomy for offices & server room |
420 kWh |
| 3 | 545W Monocrystalline Solar Panels: To produce 200kWp ▪ Mounted on steel poles embedded in concrete or bolted onto concrete pads ▪ Car port configuration in main parking area to be used for installation |
369 |
| 3 | Cabling and Accessories: ▪ Inclusive of grounding & surge protection system |
558m |
| 4 | Containerised Equipment Room ▪ Air conditioned ▪ lockable access door ▪ 20 foot container or smaller |
1 |
| TANFON OFP-200 -M | Daily power generation: <1188KWH Battery Bank Storage:420KWH Allowable max loads power : 200KW |
Qty |
|
|
TFD545W half cell PERC solar panel(LonGi N type TopCon Solar Cell) Vmp: 43.44V Voc: 51.54V Imp: 13.81A Isc:14.50A Efficiency: 23.22% Size: 2279*1134*30MM Strong anti-cracking advantage 25 years product warranty Connect way :each 15pcs in series. |
369pcs |
|
|
Model:H4T-384v Multiple PV strings inputs Simplify wiring between PV array and controller, protections to controller , Wide range of DC input voltage max circuit voltage: 1000V Reliable thunderstorm& surge protection |
4pcs |
|
|
MEGA0200TS MAX PV input:200KW/215KVA Rate current:361A Output power:275KVA Otuput voltage :400V , 3L+N+PE Battery voltage:420V-850v European Efficiency:97.5% Size:1200*800*2050 Weight:1382KG Communication：Standard: RS485 / CAN |
4set |
|
|

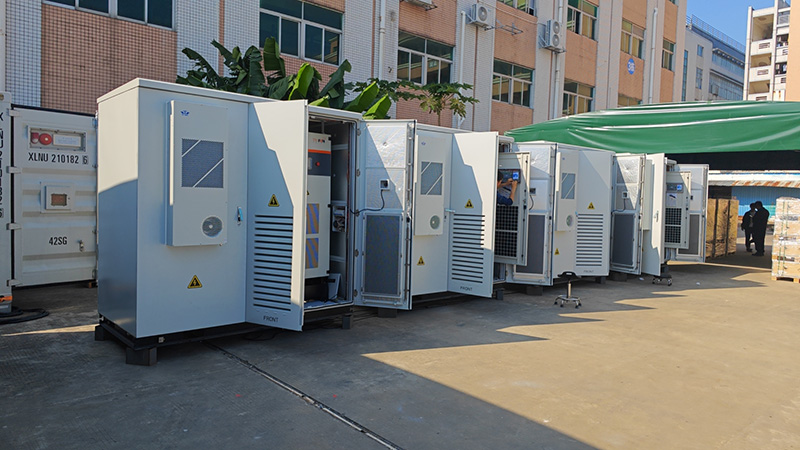

Model number: TFES-S766550 Voltage: 768V Capacity: 560AH Nominal capacity: 400KWh safety discharge current:600A Cycle life: 6000 Material: BYD battery cells 710*850*1900mm*2pcs weight:1336kg*2pcs Latest technical advantages:Input and output are completely isolated, no leakage, constant current and constant voltage output function,Lightning protection, safe and reliable. With IOT extend warranty:10 years |
1set |
|
|
The container is mainly composed of double-layer insulation system 1pcs 3KW Air-conditioning , 1set monitoring system, 1set fire protection system, 1set access control system, construction wiring of lighting system,equipment frame and other load-bearing frame and bridge;Can be added to the ceiling, reserved ceiling and box link fixed installation location, bulk design, on-site assembly;The equipment is installed on the load bearing frame, which is installed (welded) on the steel bottom plate, and the fixed installation position of the monitoring |
1set |
|
|
Slope Rooftop /Flat rooftop/ground wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable (other type of rack can be customized as per client’s requirement ) |
1set |
|
|
1)cabinet to inverter cable 120mm2 *5M*2pcs 2)Battery to cabinet cable 60mm2*3M*4pcs 2)PV combiner to MPPT cable 25mm2*5M*4pcs 2)4mm2 PV cable 800M, (black+ red) 3)1set MC4 Tools 4)12sets cable terminals and MC4 |
1set |
| Service | Linkage guidance and commissioning service at site is provided for free. | 1set |
| Full set solar system | Total Volume:48cbm/weight:15T |
