How to quickly configure a solar energy system?

Tags:

0 admin 2024-05-29 13:33:02

Based on TANFON team's annual installation experience and customer demands, we will teach you how to quickly learn to configure residential and commercial solar power systems. For typical installations, residential solar systems range from 1KW to 20KW. For commercial applications such as farms, hospitals, schools, communities, factories, and office buildings, the solar systems typically range from 30KW to 300KW.

Residential Solar Systems:

Small-sized homes: 1KW-5KW
Medium-sized homes: 5KW-10KW
Large-sized homes: 10KW-20KW

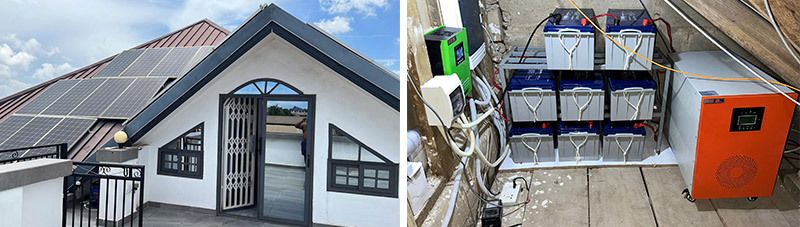

Residential Solar Systems

Commercial Solar Systems:

Farms/Schools/Office buildings: 30KW-100KW
Hospitals/Factories/Communities: 100KW-300KW

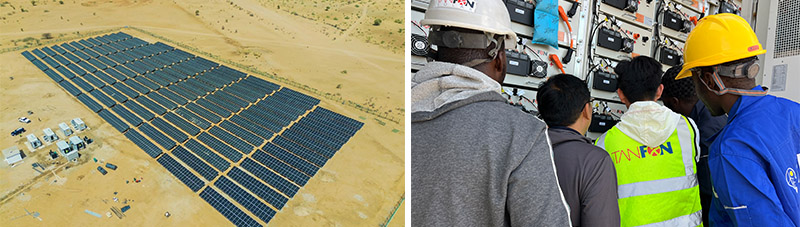

Commercial Solar Systems

Please refer to our system configuration table:

Principle & Formulas for Configuring solar power system
Solar System Power	SP1kw	SP2kw	SP3kw	SP5kw	SP10kw	SP15kw	SP20kw	SP30kw	TSP50kw	TSP80kw	TSP100kw
Solar Inverter's Power&DC Voltage	1KW 24V	2KW 24V	3KW 48V	5KW 48V	10KW 96V	15KW 192V	20KW 192V	30KW 384V	50KW 384V	80KW 384V	100KW 384V
MPPT Controller input PV Voltage Range	DC15V-DC130V		DC65V-DC150V		DC120V-DC280V	225V-760V		450V-800V
solar panel capacity	Power: 600W/pcs, VOC: 51V
Number of solar panels in series (pcs/series)	2pcs	3pcs	3pcs	3pcs	5pcs	10-13pcs	10-13pcs	13-16pcs
DC voltage of Lithium Battery	24V	24V	48V	48V	96V	192V	192V	384V	384V	384V	384V
How to configure a correct system?					First, the DC voltage of all components in the system must be the same. (PV combiner, MPPT controller, Solar Inverter, Lithium battery/Gel battery)
common DC Voltage of solar inverters and lithium batteries					12V/24V/48V/96V/192V/240V/384V
How to recommend a system for family type customers?					1) Family has 1pcs refrigerator, pcs washing machine, lighting, TV, computer, without air conditioner or pump, suggest 3KW Solar System. 2) 1pcs refrigerator, 1pcs washing machine, lighting, TV, computer, with 1pcs air conditioner, suggest 5KW Solar System. 3) 1pcs refrigerator, 1pcs washing machine, lighting, TV, computer, with 2pcs air conditioner, suggest 10KW Solar System. 4) 1pcs refrigerator, 1pcs washing machine, lighting, TV, computer, with 3pcs air conditioner, suggest 15KW Solar System.
Before configuring a solar system solution, customers are required to provide the following information: 1) How much eletricity consumption kwh do they need consume monthly/daily? ---in order to calculate out the solar panel quantity. 2) How much peak working power of all loads? -- in order to configure the rated power for the solar inverter. 3) How many hours do the load need work after sunset? -- in order to configure the capacity for Lithium battery.
Based on experience and the budgets of many customers, Generally, the minimum capacity of lithium batteries is configured according to the discharge rate of 0.5C.
